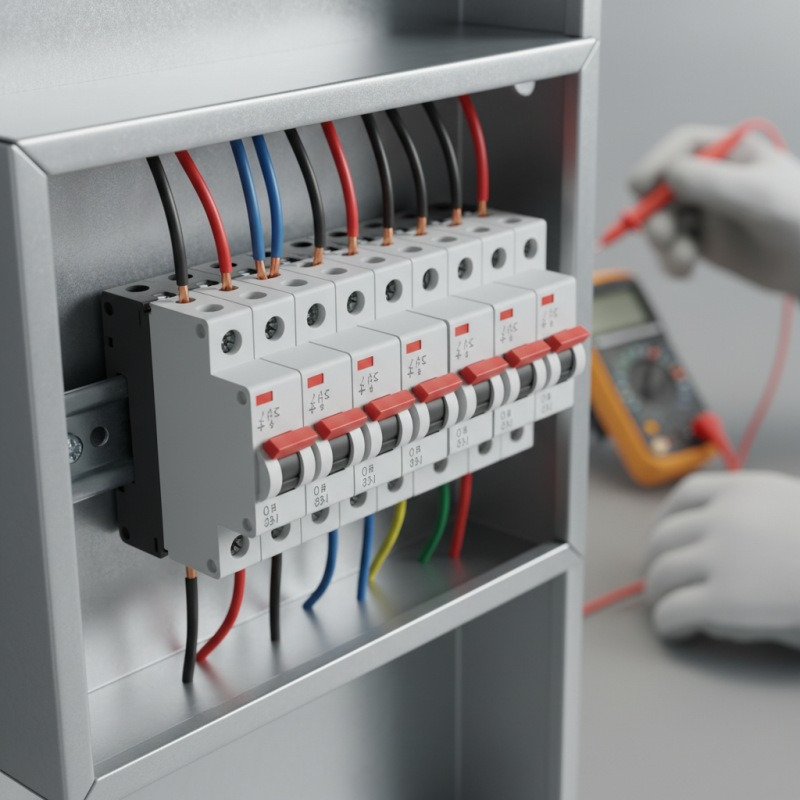

How to Choose the Right Miniature Circuit Breaker for Your Needs?
Choosing the right Miniature Circuit Breaker (MCB) is essential for safety and efficiency. According to the latest report by the International Electrotechnical Commission, over 30% of electrical failures are linked to improper circuit protection. This statistic highlights the urgency of selecting appropriate MCBs for various applications. As industry expert John Smith points out, “The right MCB can significantly reduce the risk of electrical fires.” His insight is a reminder of the consequences of neglecting this crucial decision.
When considering an MCB, it’s vital to think about your specific requirements. Different environments and electrical loads necessitate distinct features and ratings. Many underestimate the complexity of these choices. For instance, using the wrong MCB can lead to equipment damage or even personal injury. Research show that up to 40% of users fail to assess their actual needs before making a purchase. This gap in understanding can lead to regrets later on.
Select MCBs that cater to your system’s voltage and current ratings. However, be mindful—overconfidence can lead to mistakes. Each installation scenario poses unique challenges. Understanding these nuances is what separates successful projects from those that fail. With careful consideration, the right Miniature Circuit Breaker can enhance both safety and reliability.
Understanding the Basics of Miniature Circuit Breakers
Miniature circuit breakers (MCBs) are crucial for electrical safety. They protect circuits from overloads and short circuits. Understanding their functions can be simple yet profound. Each MCB is rated for specific current levels. Choosing the right rating is key. If the rating is too low, the MCB might trip frequently. If too high, it won't protect adequately. Finding that balance is vital.
MCBs come in different types. Type B is for residential use. It's suitable for resistive loads. Type C is great for industries with high inrush currents. Knowing your application helps make the right choice. It’s not just a number. The environment matters. For example, installations in humid areas require extra consideration. Incorrect placements can lead to corrosion and failure.
Moreover, testing MCBs can be overlooked. Regular checks ensure they function correctly. Without this, you might assume they are working when they aren’t. Consider the future too. Expanding your electrical load may require a different MCB. Adaptability is important. Ignoring these factors can lead to unsafe conditions. Reflect on your needs often. It’s better to assess than to regret.
How to Choose the Right Miniature Circuit Breaker for Your Needs?
| Parameter | Description | Example Value |
| Rated Current (In) | The maximum current that the circuit breaker can carry without tripping. | 16A, 32A, 40A |
| Tripping Curve | The characteristic of the breaker that defines how quickly it will trip under overload or short-circuit conditions. | B, C, D |
| Number of Poles | Indicates how many individual circuit paths the breaker protects. | 1P, 2P, 3P |
| Operating Voltage (Un) | The maximum voltage the circuit breaker can safely interrupt. | 230V, 400V |
| Breaking Capacity (Icn) | The maximum fault current that the breaker can interrupt without failure. | 6kA, 10kA, 25kA |
| Applications | Typical usage scenarios for different types of miniature circuit breakers. | Residential, commercial, industrial |
Identifying Your Electrical Load Requirements
When selecting a miniature circuit breaker (MCB), understanding your electrical load is crucial. Different devices require varying levels of power. For instance, a refrigerator might need around 300 watts, while a microwave can demand over 1000 watts. It's essential to consider all devices that will be connected. This requires some planning and a bit of math.
Map out all your electrical appliances. List their wattage and the total running load. If you're unsure, using a wattage meter can help. You may find surprising results. Perhaps your space heater is consuming more power than expected. This can lead to circuit overloads if not accounted for properly.
After assessing your load, compare it against the MCB's ratings. Each MCB has specific amperage limits. Picking one too low might result in frequent trips. Yet, choosing one too high can leave your system vulnerable to faults. Constantly reflect on your load as new devices enter your home or workspace. It’s not just about the present but also future-proofing your electrical needs.
Miniature Circuit Breaker Load Requirements
Choosing the Correct Current Rating for Your Application
When selecting a miniature circuit breaker (MCB), current rating is crucial. A typical household circuit can range from 10A to 32A, depending on the electrical load. Accurately determining the right current rating is essential for safety and efficiency. Misjudging this could lead to circuit failures or equipment damage.
The National Electrical Code (NEC) suggests that MCB ratings match the expected amperage load. If you underestimate, the breaker may trip too frequently. If you overestimate, it may fail to protect equipment. Research indicates that 25% of electrical faults are due to improper circuit protection choices. Therefore, a thorough load analysis is vital.
Consider the specific appliances or machinery connected to the circuit. Devices like HVAC systems often have higher start-up currents. This needs to be factored in when selecting an MCB. For instance, a motor may draw five times its rated current at startup. Such details impact your choice significantly. Not all scenarios are straightforward; reflection on your unique needs is essential.
Evaluating Different Types of Miniature Circuit Breakers
When evaluating different types of miniature circuit breakers (MCBs), you need to consider several key factors. MCBs come in various types, each serving specific applications. For instance, Type B MCBs are suitable for lighting and simple resistive loads. Type C MCBs, however, are ideal for inductive loads, like motors. It’s essential to match the MCB with your specific requirements.
Another aspect is the current rating. Choosing the right rating is crucial to prevent nuisance tripping. If you inadvertently pick a lower rating, your MCB may trip frequently. Conversely, an oversized breaker may not provide adequate protection. The characteristics of your electrical system play a significant role in this decision process. It's worth reflecting on your past choices; a miscalculation can lead to costly downtime.
Additionally, consider the breaking capacity of the MCB. This defines how much fault current the breaker can interrupt safely. For industrial applications, the breaking capacity must meet specific codes and safety standards. An inadequate capacity can result in severe consequences. It’s a complex decision that requires careful thought and evaluation. Don’t rush; analyzing your precise needs ensures reliability and safety in your electrical system.
Ensuring Compliance with Safety Standards and Regulations
Choosing the correct miniature circuit breaker (MCB) is crucial for safety. Compliance with safety standards is not just a checkbox; it's essential for functional reliability. According to data from the International Electrotechnical Commission (IEC), approximately 30% of electrical fires result from inadequate protection systems. This highlights the importance of employing compliant MCBs.
Safety regulations like IEC 60898 stipulate performance requirements for MCBs. Not all products on the market adhere to these guidelines. It’s alarming that a 2022 report from Industry Safety Analysts revealed that nearly 40% of tested MCBs failed to meet basic compliance metrics. When choosing MCBs, pay attention to ratings and trip characteristics. A mismatch can lead to equipment damage or fire hazards.
Installation practices also influence safety outcomes. Regular inspections and tests should not be overlooked. About 25% of circuit breakers inspected annually reveal improper installations. This statistic suggests the need for further training in electrical safety practices. Compliance is not mere paperwork; it requires a commitment to best practices. Ensure that your circuit breakers are up to standard to protect both life and property effectively.
